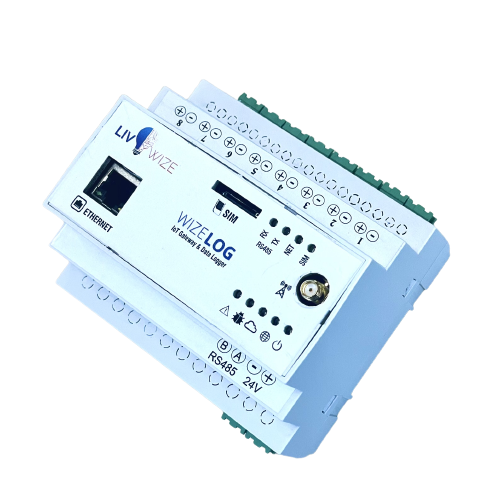

WIZELOG - IoT Gateway and Data Logger

‘WIZELOG’ is  a series of highly reliable IoT Gateway and Data Logger devices that are able to assist in IoT Remote Monitoring System machines, utility meters and analog sensors and can acquire measurements from multiple sensors over various analog and digital interfaces. Suitable for air, water, energy, telecom, oil, solar pv, gas, power flow monitoring and also for pressure, temperature, humidity and many other types of IoT device monitoring, powered by Livwize – IoT Gateways and Data Loggers Manufacturer in India.

Communicates securely to the cloud via (4G-LTE / Ethernet/ Wi-Fi) for real-time data monitoring.

‘WIZELOG’ IoT Data Logger is a multi-purpose device that acts as an IoT Data Logger and a Gateway. This plug-n-play device can be integrated with any Analog or Digital sensor network and Modbus interfacing to capture real-time data for remote and predictive analysis.

Tech Specs

• Connectivity: 4G-LTE, Ethernet, Wi-Fi(opt), BLE(opt)
• Data Logging: Min 1 min, Max: Custom
• Interface(s): 1 x RS485(2-wire), 1 x RS232(opt), 4/8 ch x 4-20mA (±1% FS)
• Voltage: 12-24V DC or 220-230V AC (opt)
• Protection: O/P: Surge protection, I/P: Over Voltage and Reverse Polarity Protection
• Operating Temperature: -20°C to +55°C (normal) | -40°C to +70°C (extended)
• Isolation: Modbus Up to 3KV | Ethernet Up to 2KV
• LED Indicators: 1x Power, 1x Modbus , 1x Network, 1x Cloud
• Enclosure: DIN Rail, Wall/Table Top (opt)
• Certifications Compliance: Meet CE, FCC, RoHS standards
• Dimensions: 105 x 90 x 66 mm

Product Document
